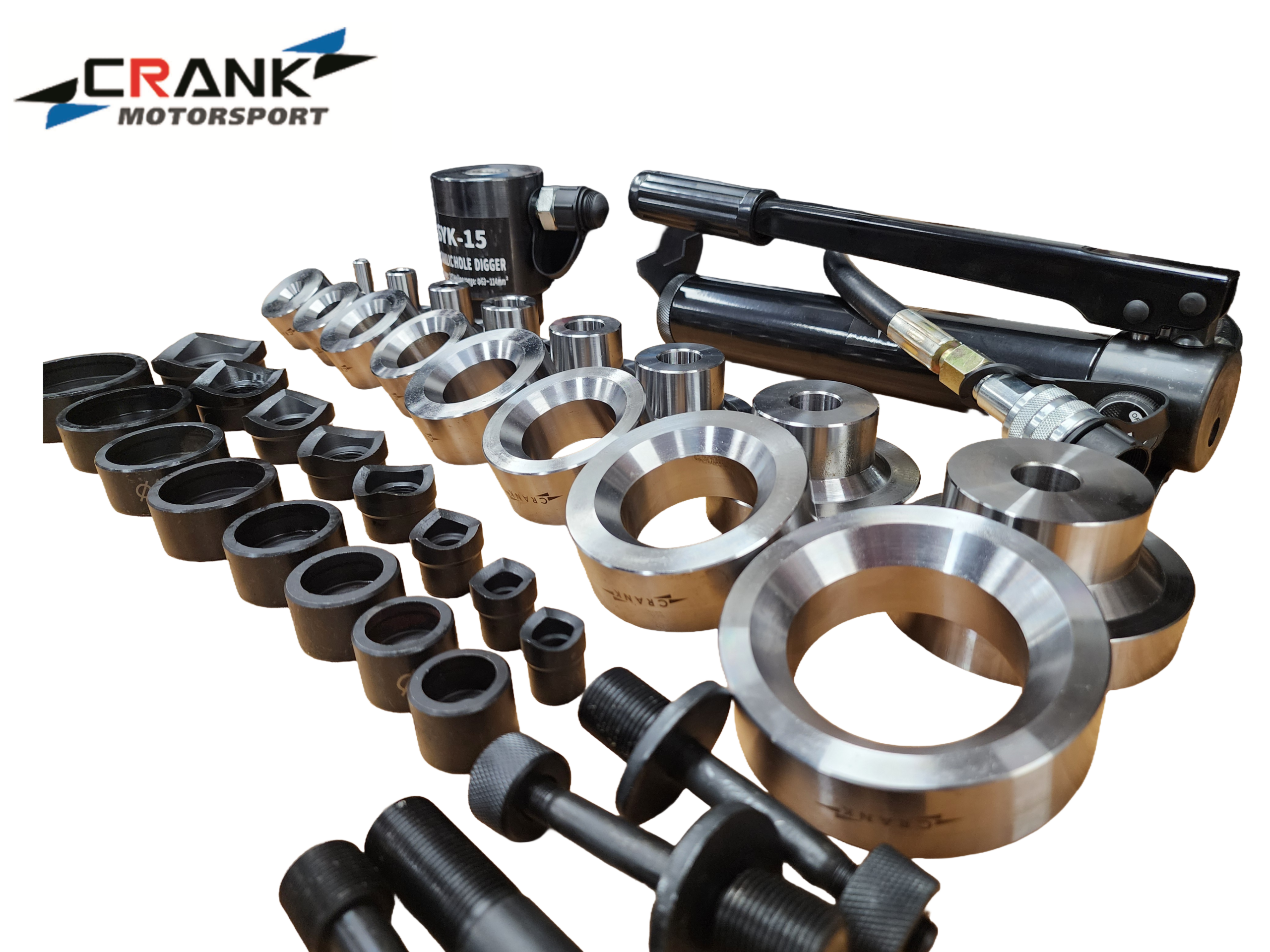

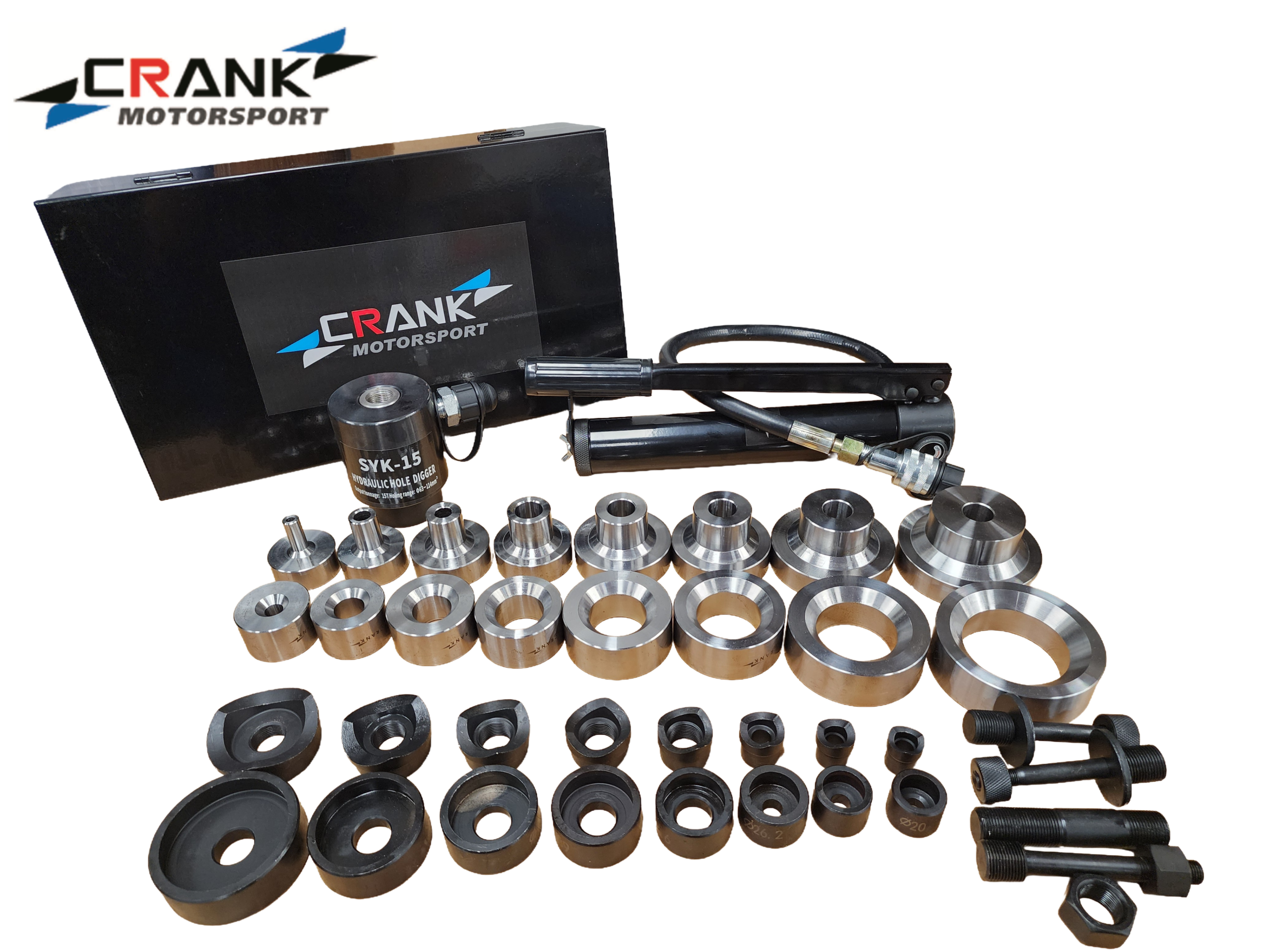

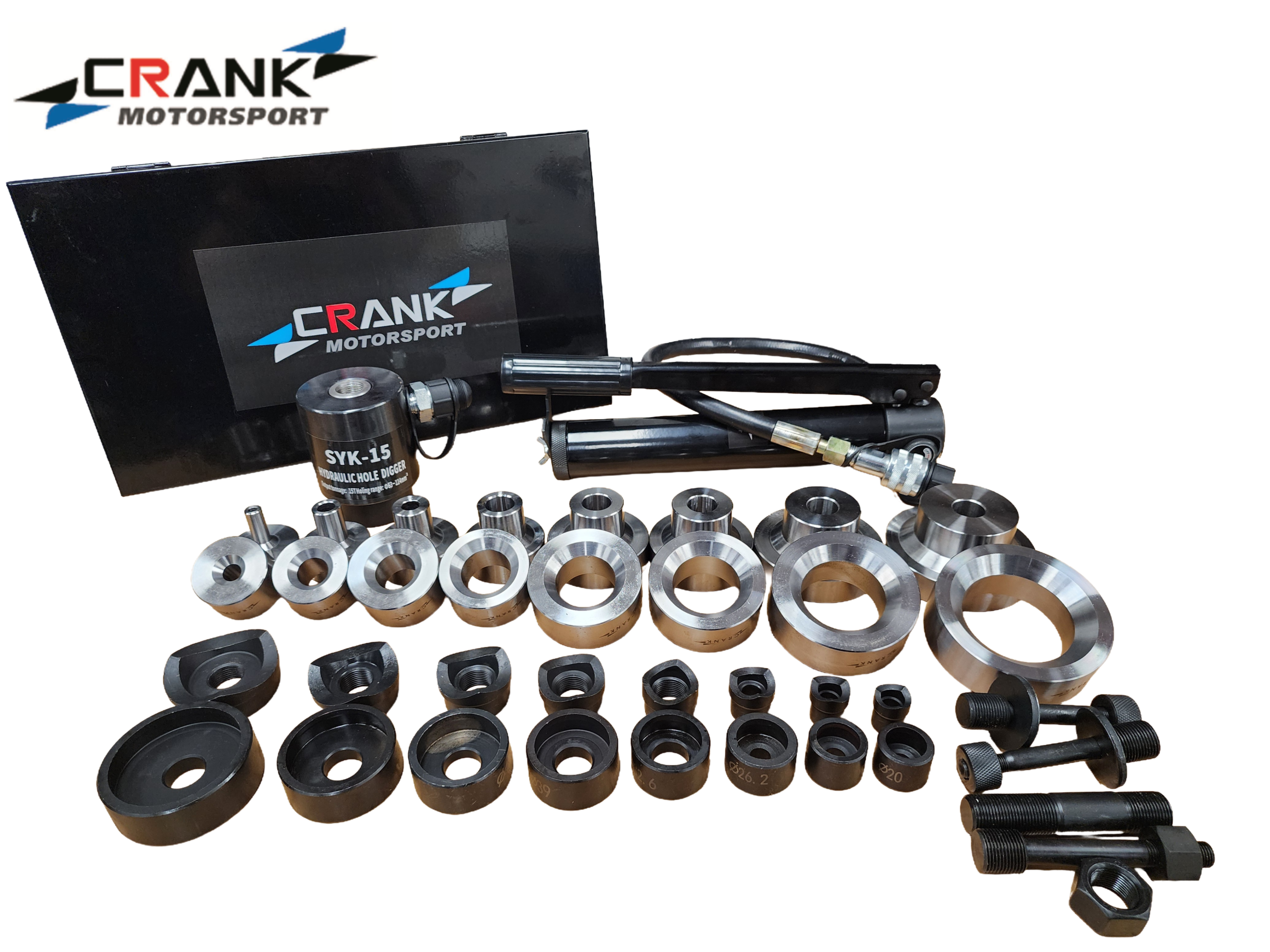

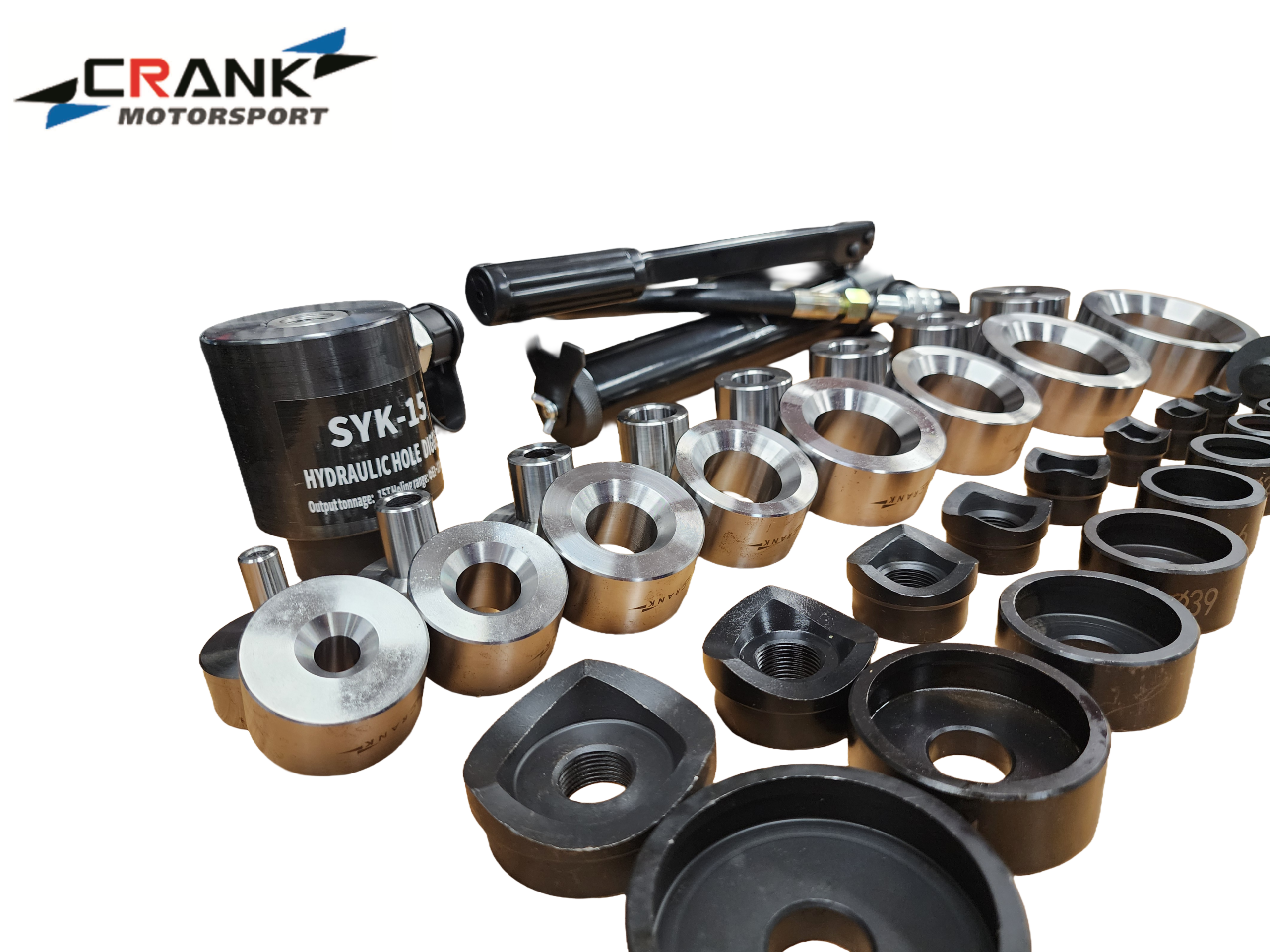

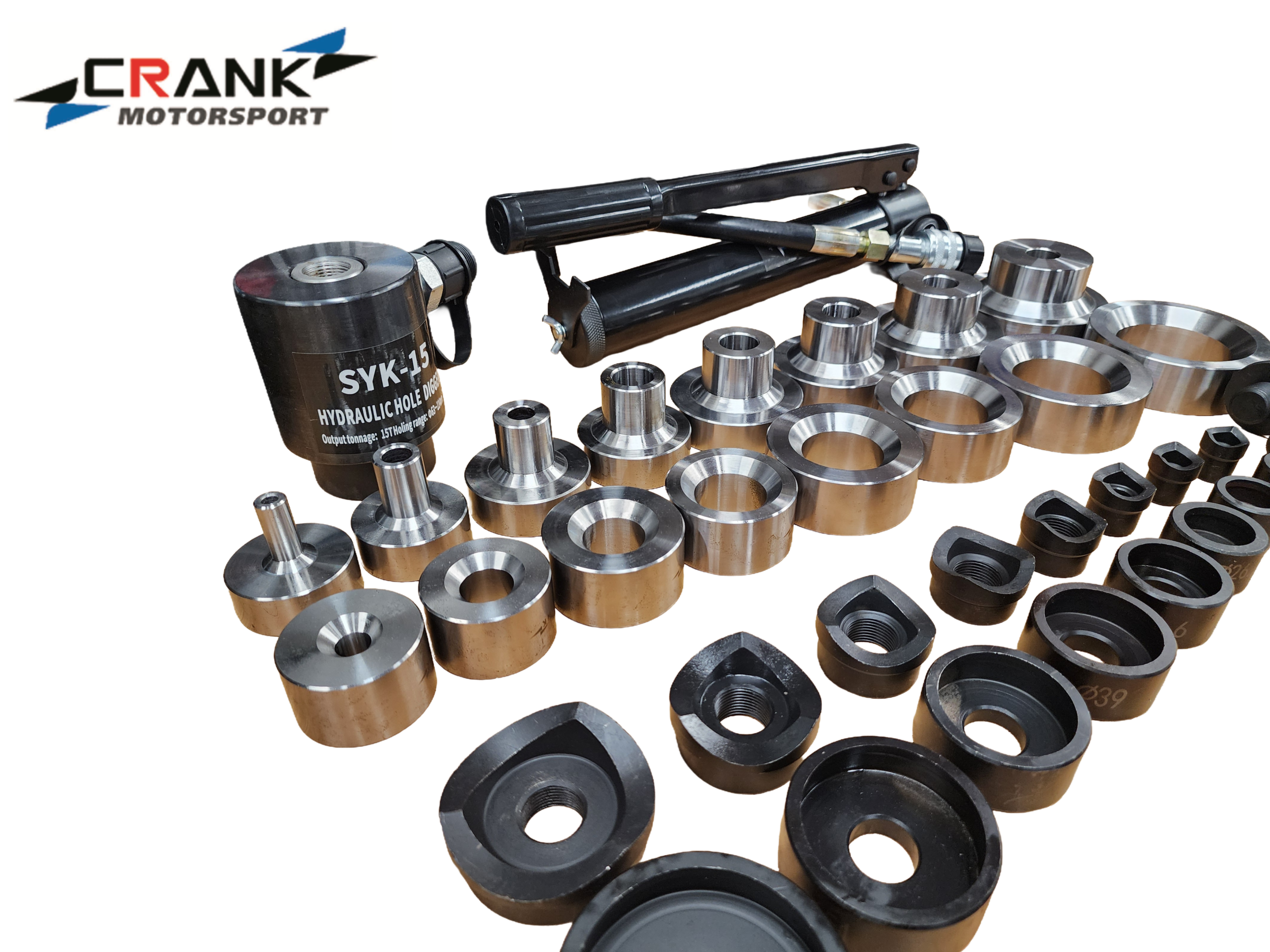

Instock Ready to go, Business and Shipping terms as usual.Crank Motorsport Premium quality 36 Pcs Hole punch and dimple die set. Professional’s choice for all sheet metal worksThrow away the messy hole saw, and forget about not able to find the hole saw size for the dimpleJust clean cut and dimple EVERY TIME. Kit is completed with mega 56 pcs cutter and dimple all the way from 12mm (1/2″) to 63mm (2.5″) shaft diameter dimple. dimple dies are make to suit the cutter with perfect fitment for perfect dimple every time
Dimples are made from chromoly steel and heat treated for ultra durable and strength.Supplied with heavy duty 15ton mobile hand pump and ramp with quick connection. Cut and dimple anytime anywhere.
***NO MORE SHOP PRESS NEEDED***
Cutter size as follow (metric, mm):20, 22, 26, 32, 39, 43, 51, 63, Maximum Cut thickness 3.5mm on M.S. 2.0mm on SS.
Dimple size (metric,mm) 12, 20, 26, 32, 39, 43, 51, 63Comparison in Imperial for reference only1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 1-3/4″, 2″, 2-1/2″Maximum Dimple thickness : 3.0mm
Premium Carry case included with the kit
PROS AND CONS of Radius shape dimple dies
Advantage: -Smooth stress distribution on dimple. will not cause crack/facture. Ideal for
aluminium- Better
appearance compared to tapper shape dimples Disadvantage: -Limited metal thickness can work on (1.8mm max)
– Less pronounced dimple compared to tapper shape.Further questions please let us knowPayment to be made within 4 business days upon purchase. Item will be shipped out next business day. Approximate delivery time as follow via auswide road freight to metro areas:
VIC: 1-2 DaysNSW,SA: 2-3 DaysQLD: 3-5 DaysPerth, NT, TAS: 5-7 Days
Freight time may take longer for regional areas. Tracking number will be provided once booking is made.
For pick up: CRANK MOTORSPORTCroydon South VIC*Thank you and happy shopping!*
