Instock Ready to go, Business and Shipping terms as usual.

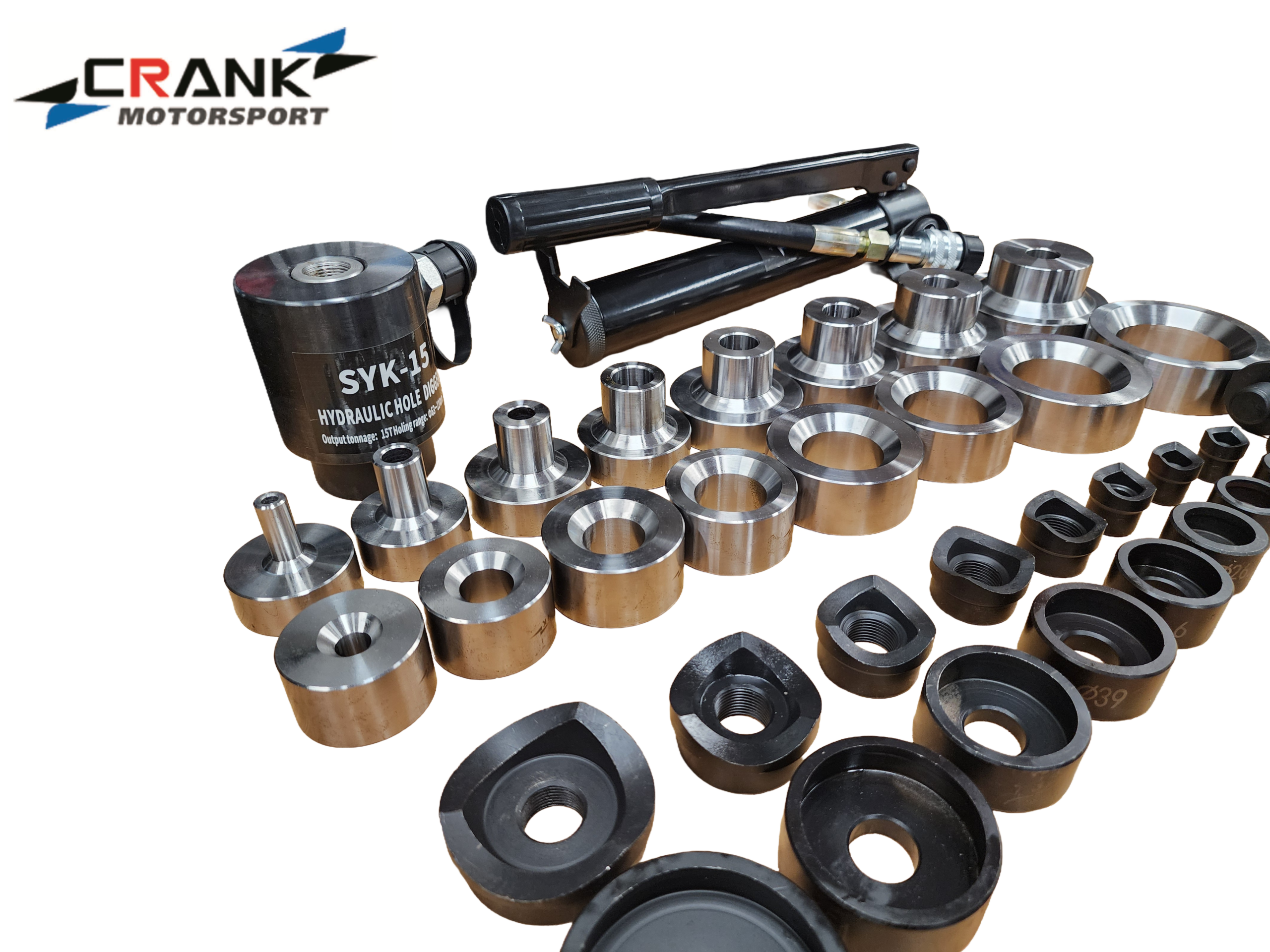

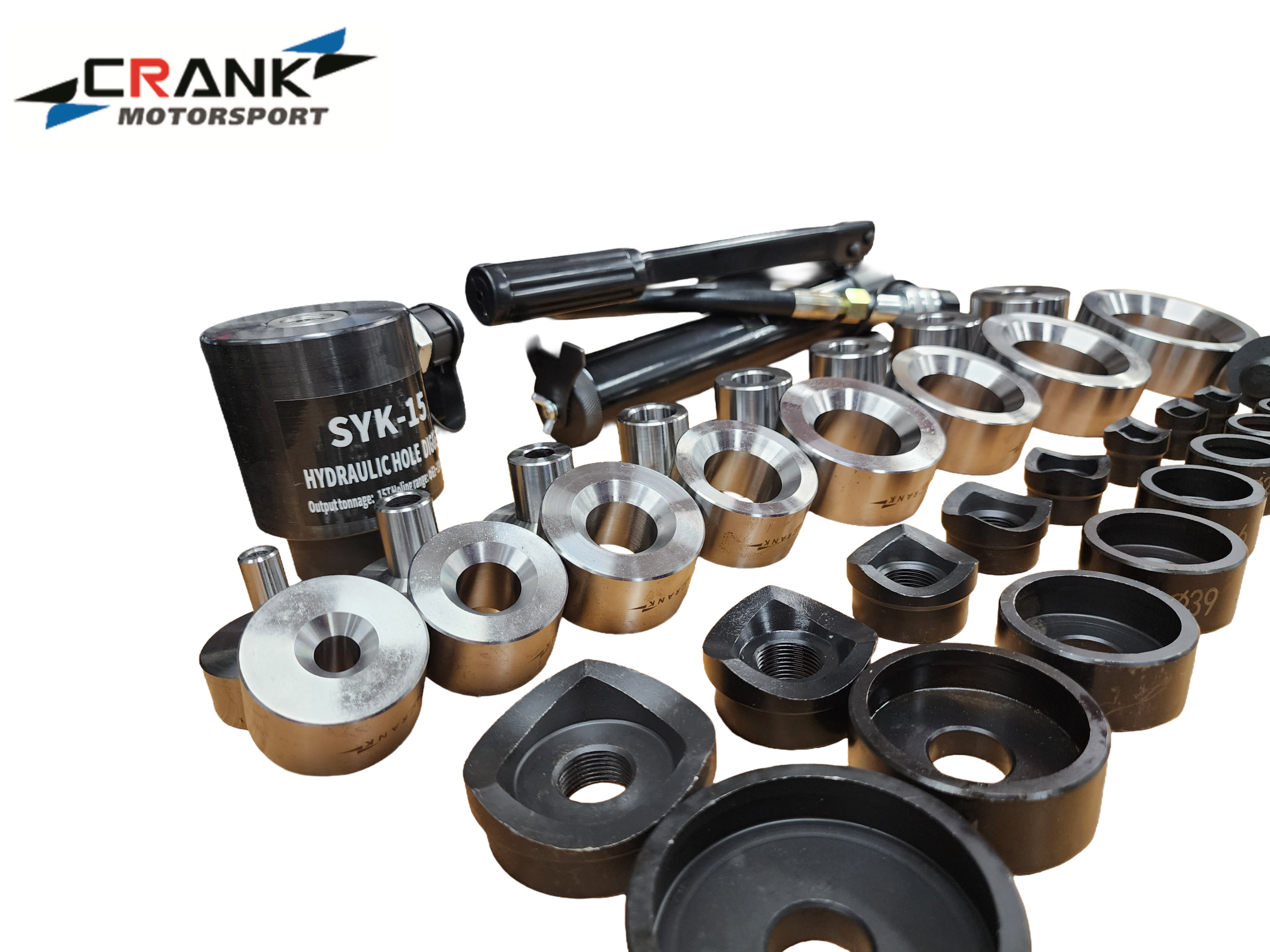

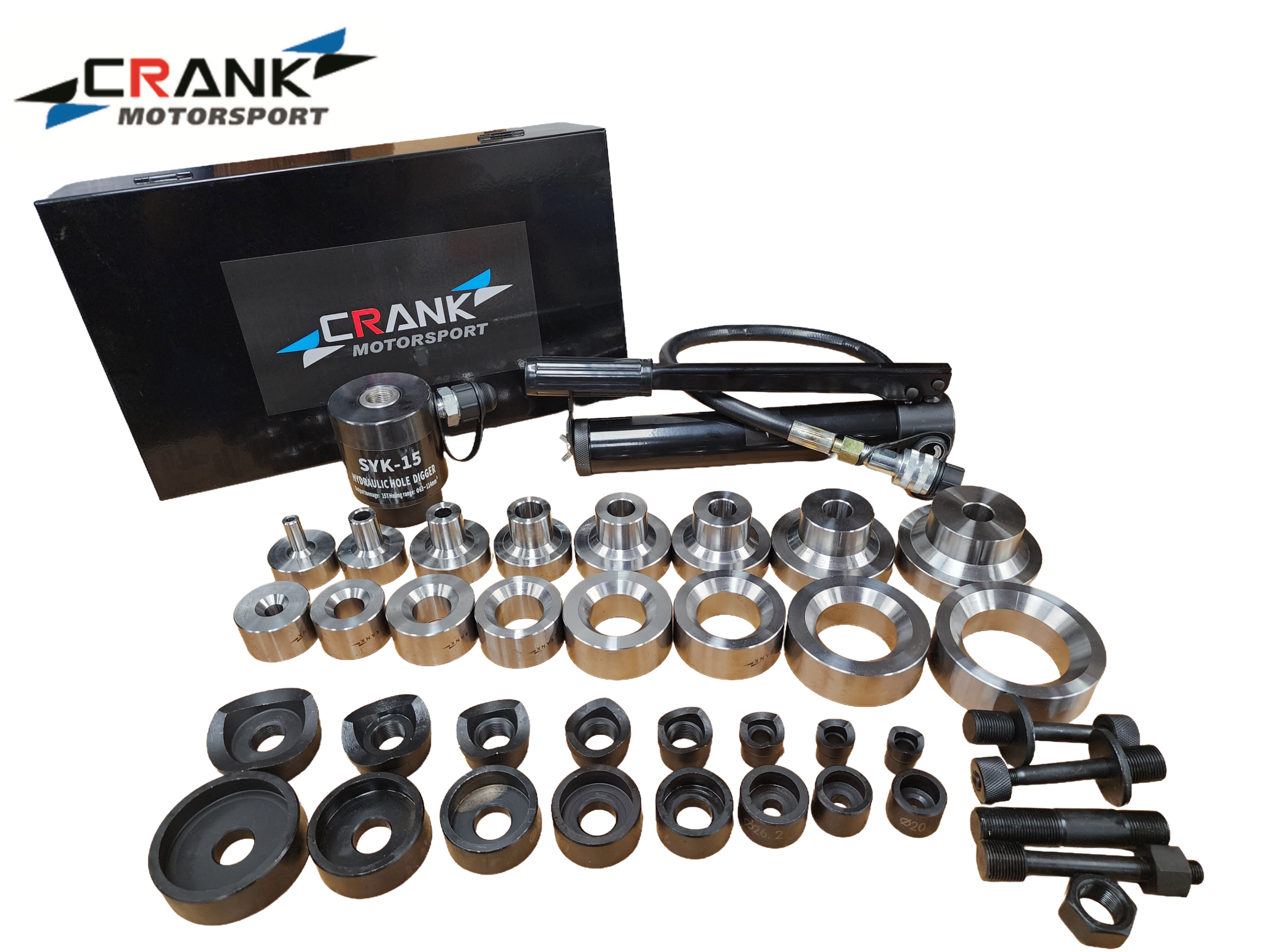

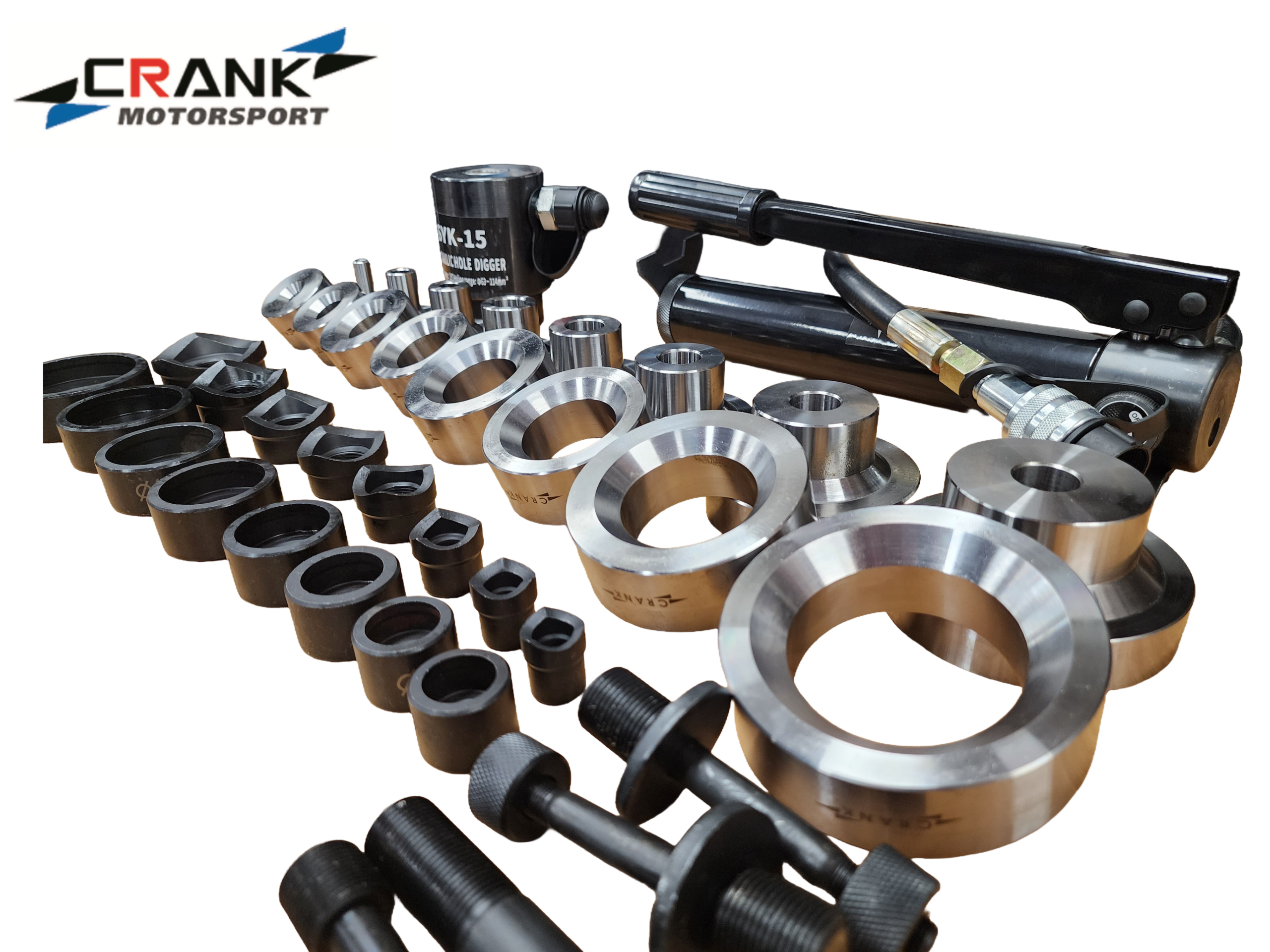

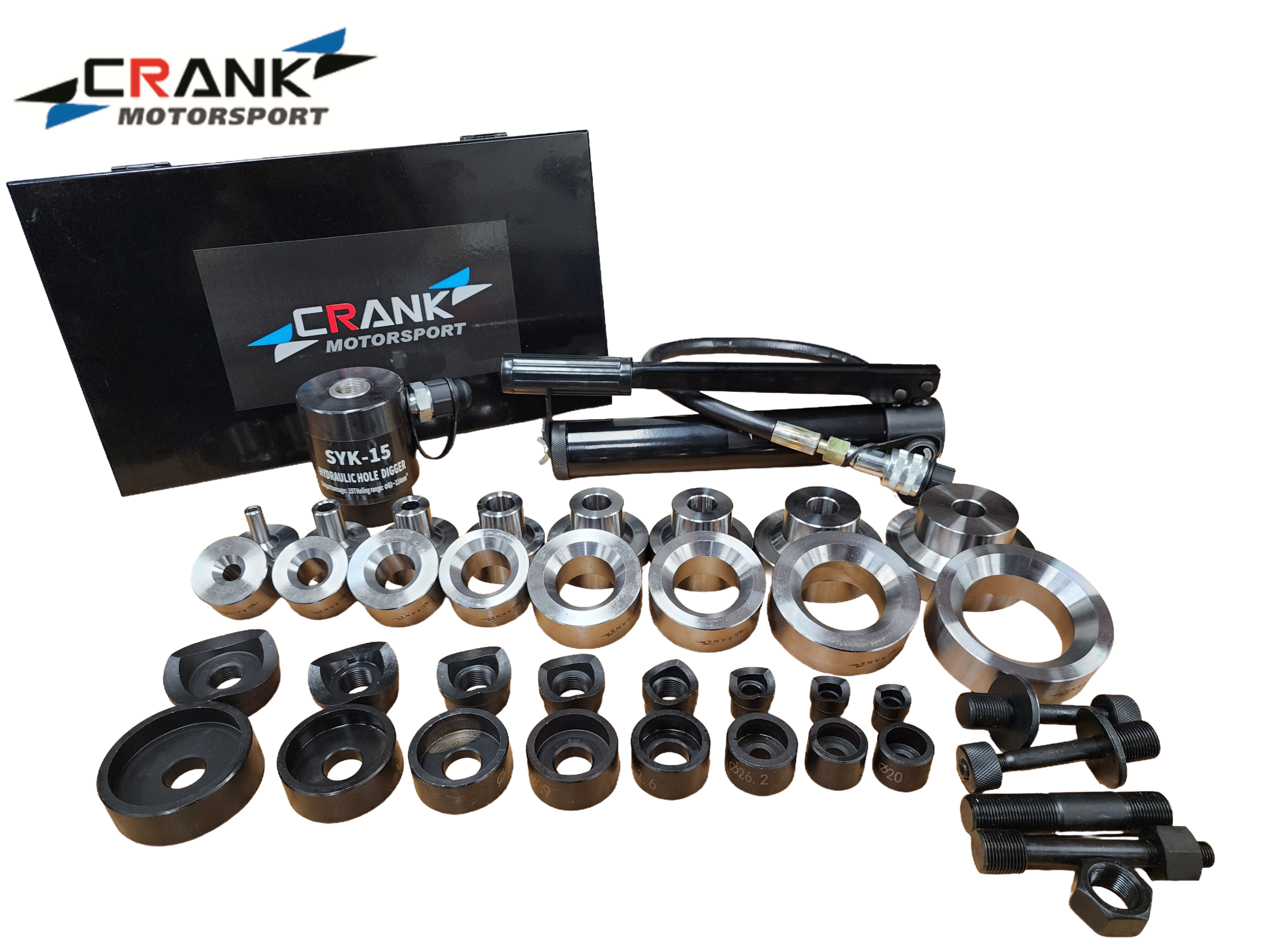

Brand New in box 32 Pcs Hole punch and dimple die set. Professional’s choice for all sheet metal worksThrow away the messy hole saw, and forget about not able to find the hole saw size for the dimpleJust clean cut and dimple EVERY TIME. Kit is completed with36 pcs cutter and dimple all the way from 12mm (1/2″) to 63mm (2.5″) shaft diameter dimple. dimple dies are make to suit the cutter with perfect fitment for perfect dimple every time
Dimples dies are made from chromoly steel and heat treated for ultra durable and strength.Supplied with heavy duty 15 tone mobile hand pump and ramp. Cut and dimple anytime anywhere.
***NO MORE SHOP PRESS NEEDED****** How it works demonstration go to the following YouTube link**
https://www.youtube.com/watch?v=sHI387L5SC0
Cutter size as follow (metric, mm):20, 22, 26, 32, 39, 43, 51, 63, Maximum Cut thickness 3.5mm on M.S. 2.0mm on SS.
Dimple size (metric,mm) 12, 20, 26, 32, 39, 43, 51, 63Comparison in Imperial for reference only1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 1-3/4″, 2″, 2-1/2″Maximum Dimple thickness : 3.0mm
PROS AND CONS of Taper shape dimple dies
Advantage: – Can accommodate wide range of metal thickness (up to 3mm)- Create a bigger dimple & deeper depth dimples Disadvantage: – Will create a stress line on the edge of the dimple, prone to fracture especially for aluminium – Appearance may not be as good compared to RADIUS
Further questions please let us knowPayment to be made within 4 business days upon purchase. Item will be shipped out next business day. Approximate delivery time as follow via auswide road freight to metro areas:
VIC: 1-2 DaysNSW,SA: 2-3 DaysQLD: 3-5 DaysPerth, NT, TAS: 5-7 Days
Freight time may take longer for regional areas. if unsure please ask for quote; Tracking number will be provided once booking is made.
For pick up: CRANK MOTORSPORTCroydon South *Thank you and happy shopping!*
