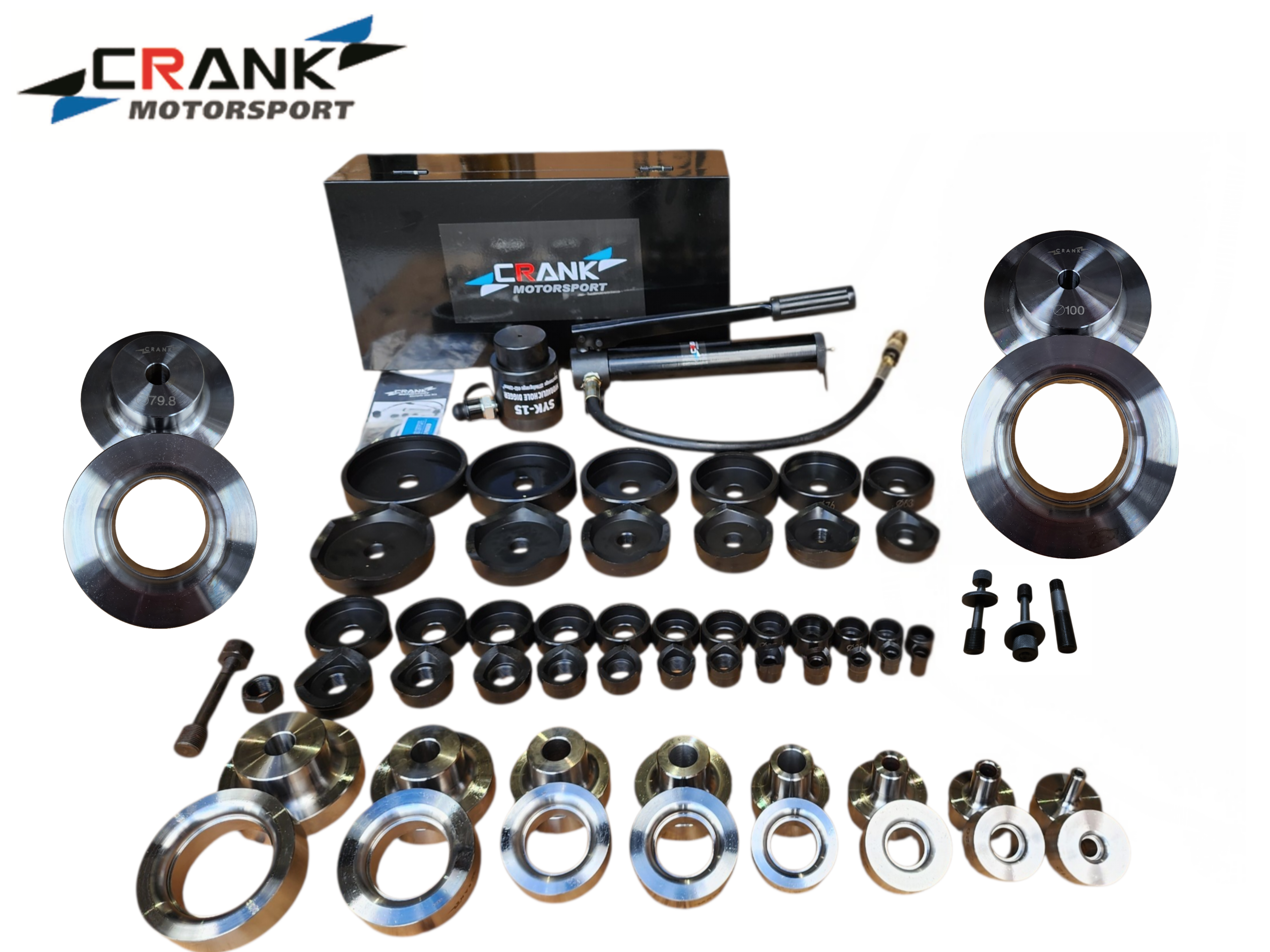

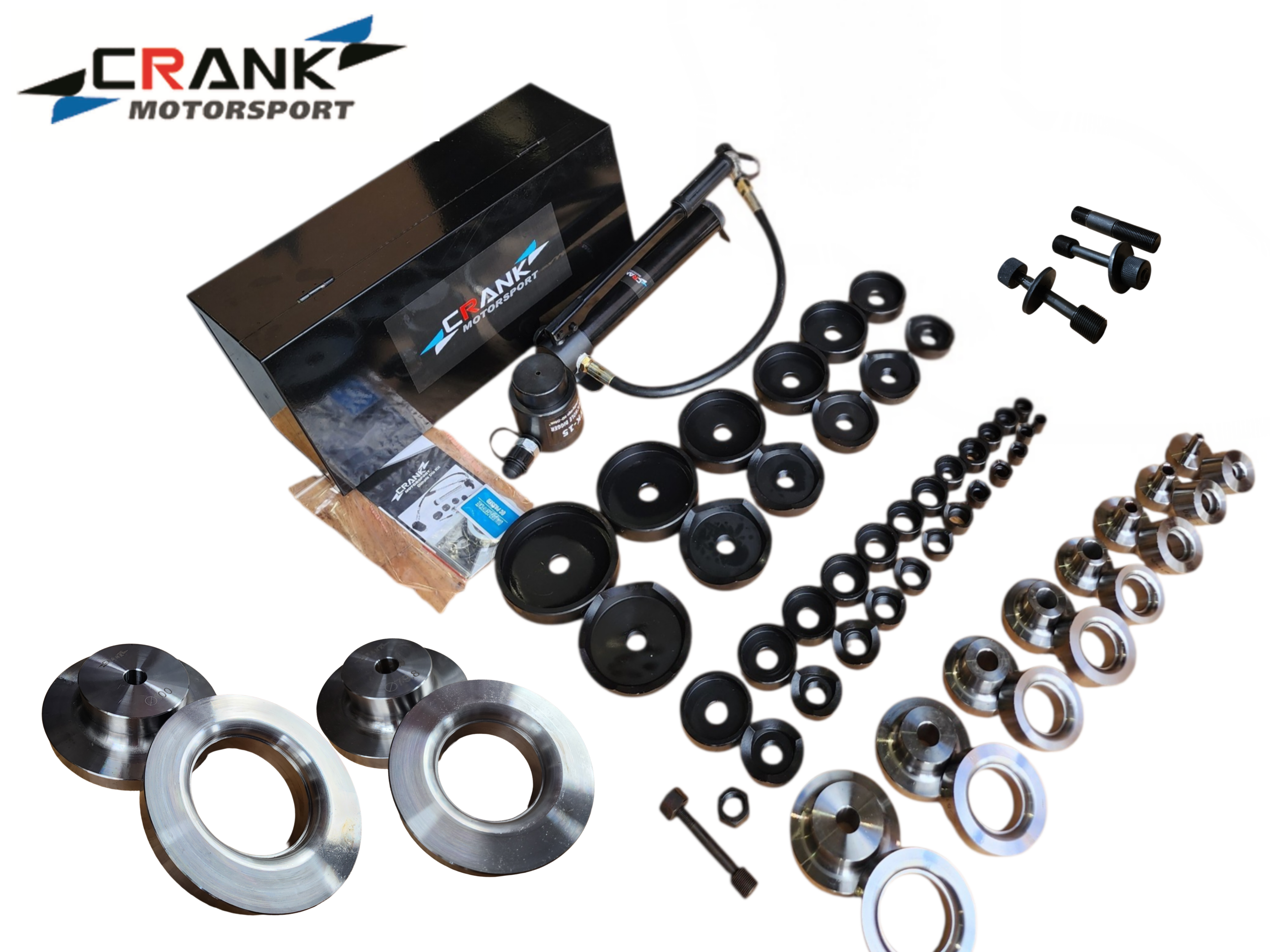

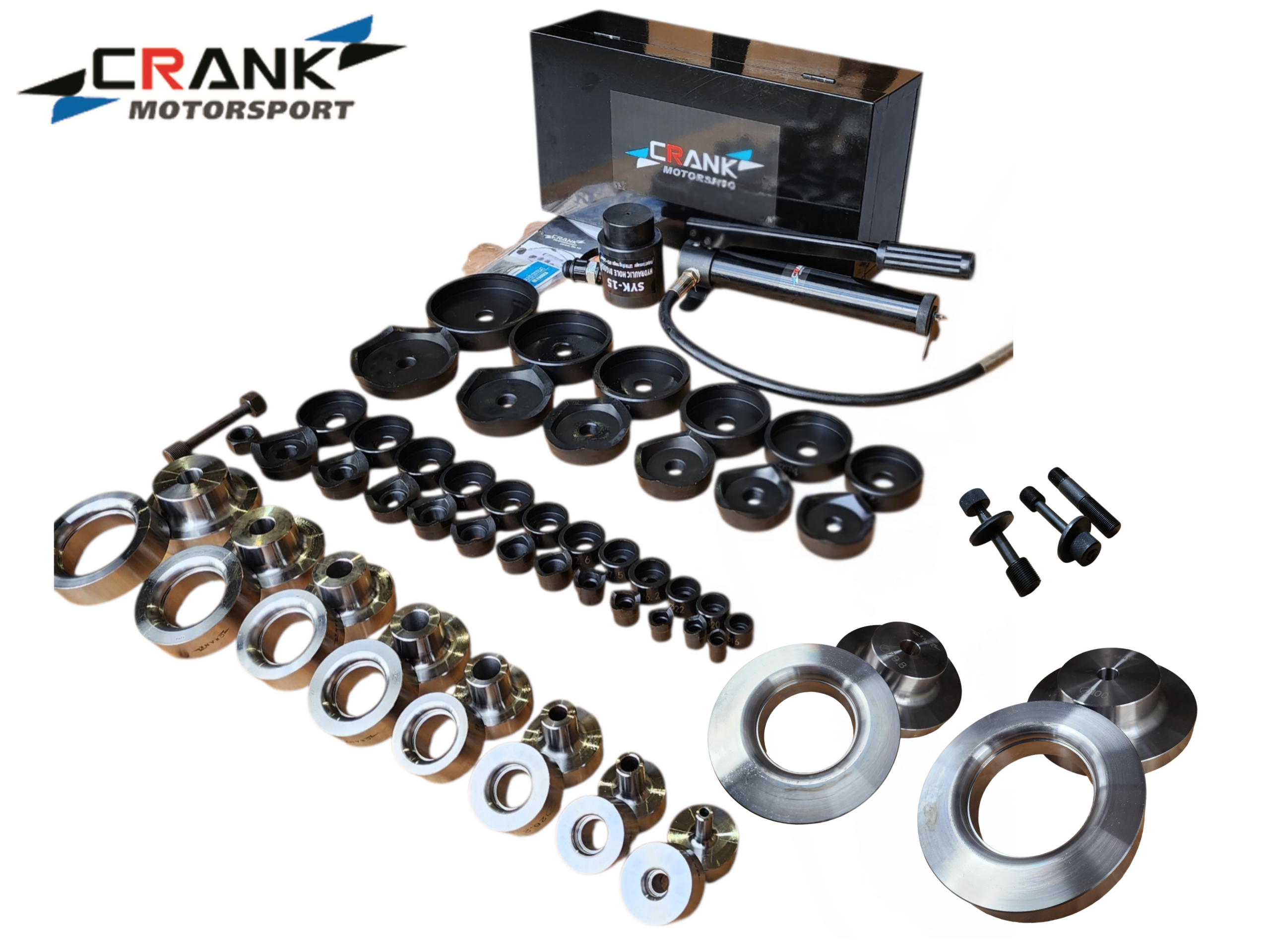

Instock Ready to go, Business and Shipping terms as usual.Brand New in box 56 Pcs Hole punch and dimple die set. Professional’s choice for all sheet metal worksThrow away the messy hole saw, and forget about not able to find the hole saw size for the dimpleJust clean cut and dimple EVERY TIME. Kit is completed with mega 56 pcs cutter and dimple all the way from 12mm (1/2″) to 100mm (4″) shaft diameter dimple. dimple dies are make to suit the cutter with perfect fitment for perfect dimple every time
Dimples are made from chromoly steel and heat treated for ultra durable and strength.Supplied with heavy duty 15ton mobile hand pump and ramp. Cut and dimple anytime anywhere.
***NO MORE SHOP PRESS NEEDED****** How it works demonstration go to the following YouTube link**
https://www.youtube.com/watch?v=sHI387L5SC0
Cutter size as follow (metric, mm):16, 20, 22, 26, 27, 32, 34, 39, 43, 49, 51, 60, 63, 76, 80, 89, 101, 114.Maximum Cut thickness 3.5mm on M.S. 2.0mm on SS.
Dimple size (metric,mm) 12, 20, 26, 32, 39, 43, 51, 63, 80, 101.Comparison in Imperial for reference only1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 1-3/4″, 2″, 2-1/2″, 3-1/4″, 4″Maximum Dimple thickness : 3.0mm
PROS AND CONS of Radius shape dimple dies
Advantage: -Smooth stress distribution on dimple. will not cause crack/facture. Ideal for
aluminium- Better
appearance compared to tapper shape dimples Disadvantage: -Limited metal thickness can work on (1.8mm max)
– Less pronounced dimple compared to tapper shape.Further questions please let us know
For pick up: CRANK MOTORSPORTCroydon South VIC*Thank you and happy shopping!*
